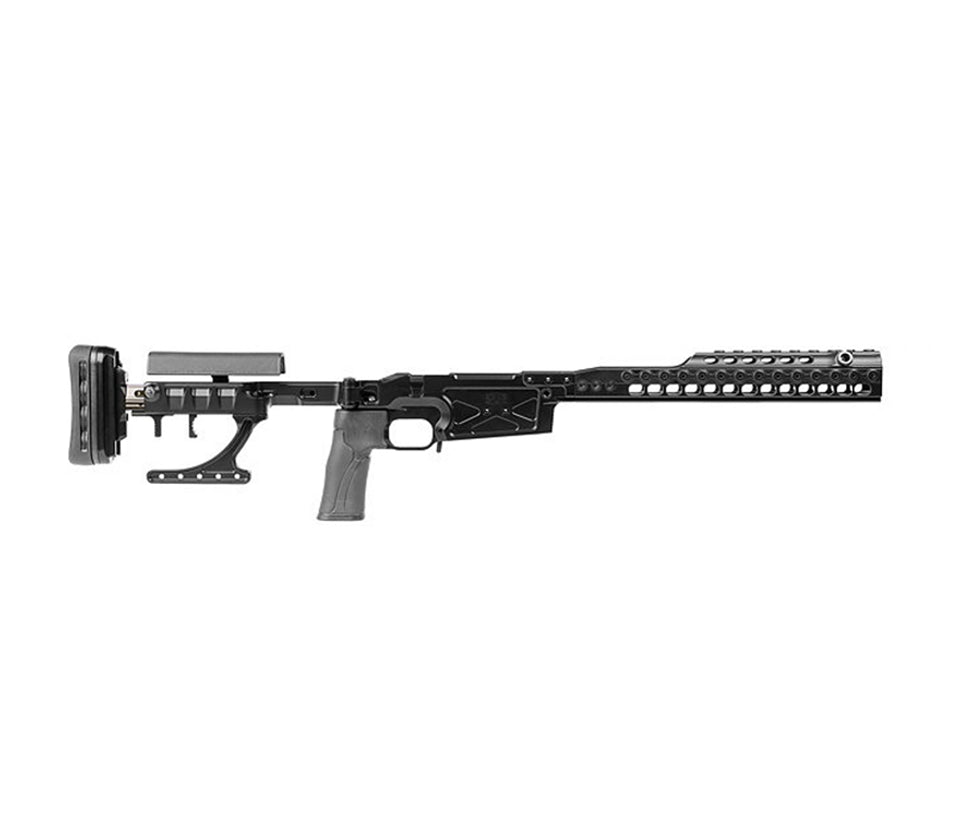

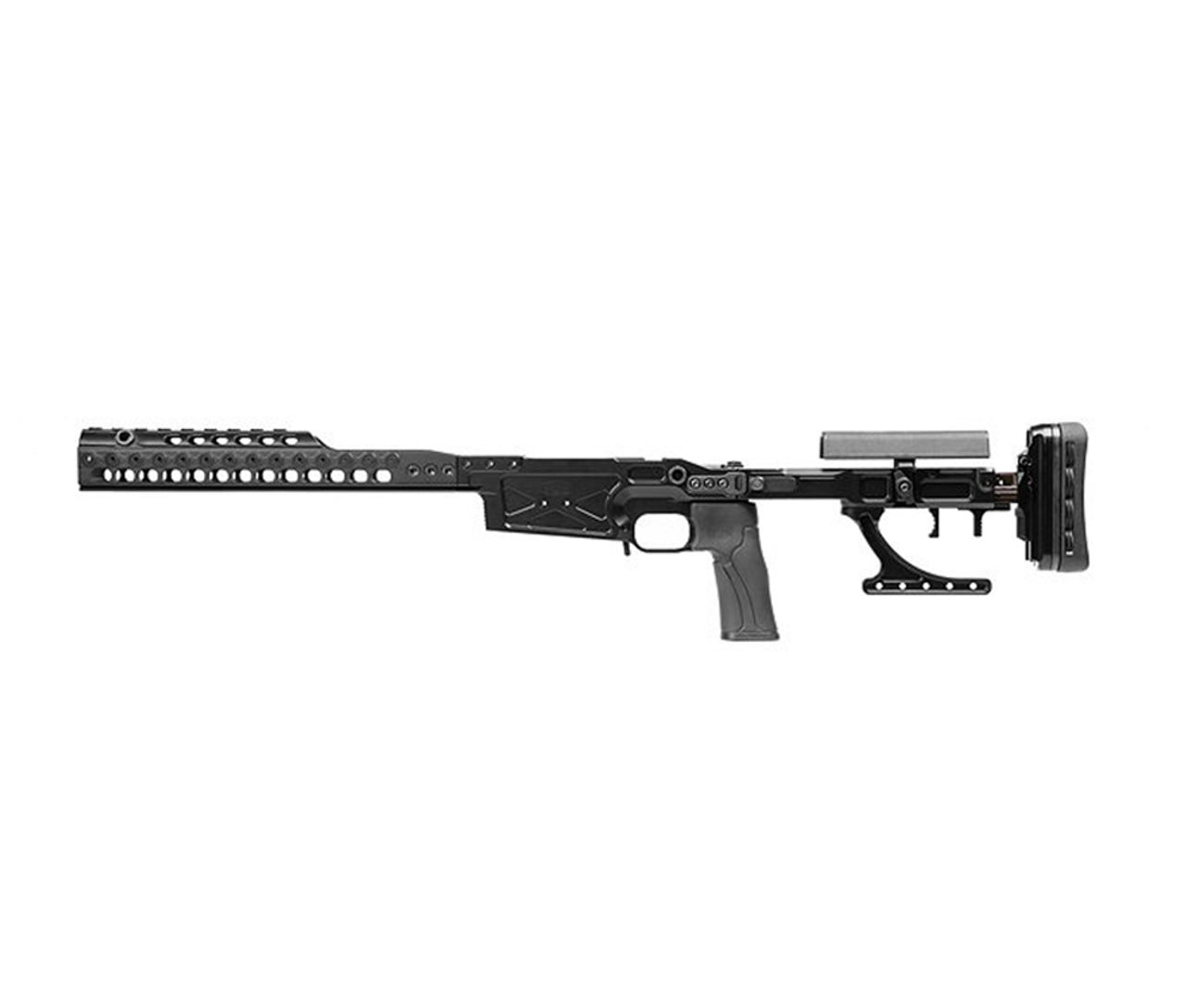

Spuhr Chassis Rem 700 SA, Black, 13”

Article no: CH000011

Spuhr® Ideal Chassis System™ - Modular Chassis System with Quick-Adjustable LOP and Recoil Pad Height for Proper Eye-Relief when Moving Between Different Shooting Positions

Optimized for Remington 700 Short Action

13" Forend for use with suppressors and barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.

Will also fit short actions from:

• Impact Precision
• Mack Bros
• Vudoo Gun Works

Specifications:
Length: 898 mm/35.4” (608 mm/24.0” folded)
LOP: 330 mm/13" (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.26 kg/4.98 lb
Forend: 329 mm/13.0”
Color: Black

The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:

• Aircraft grade aluminum alloy construction

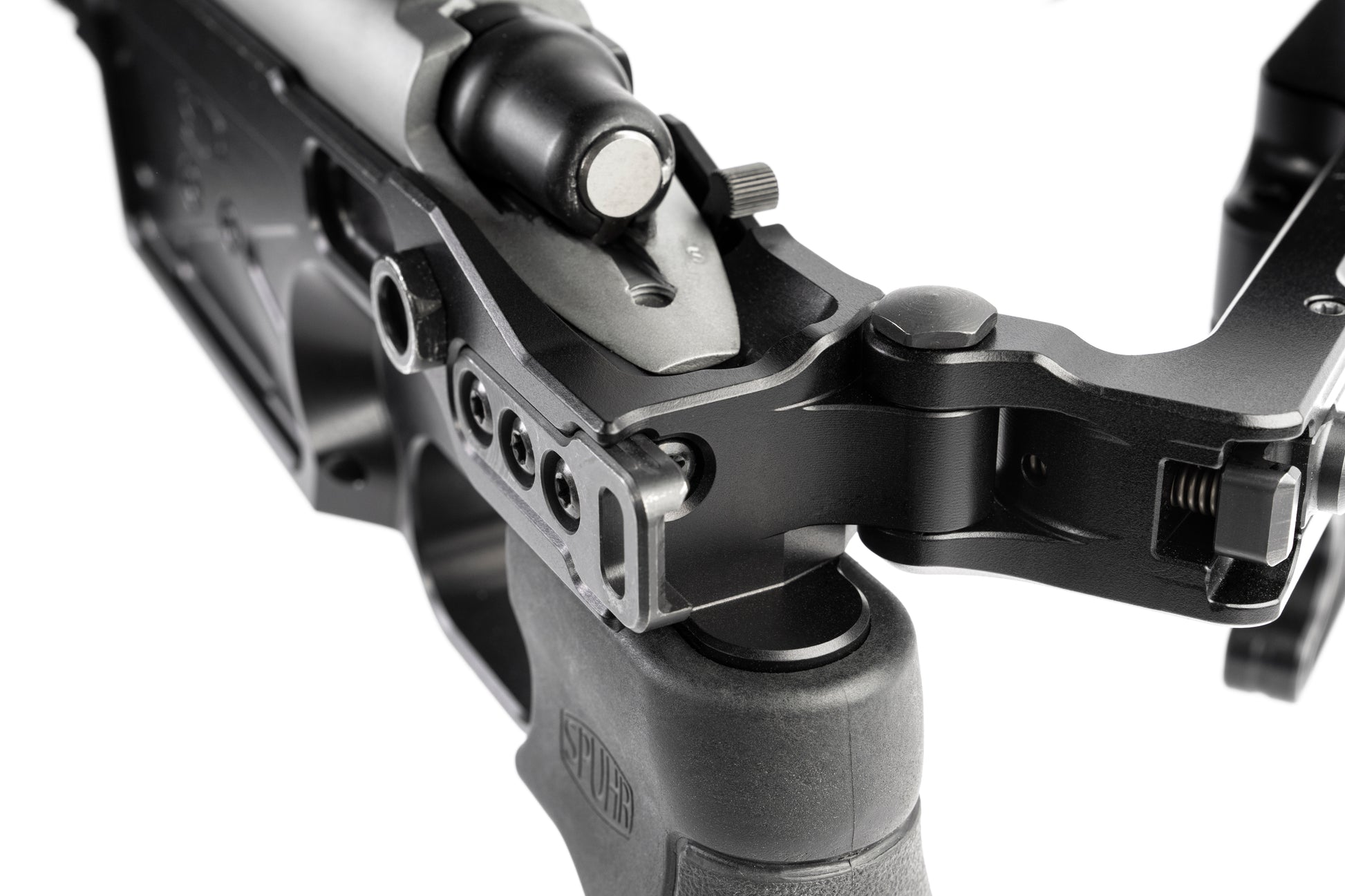

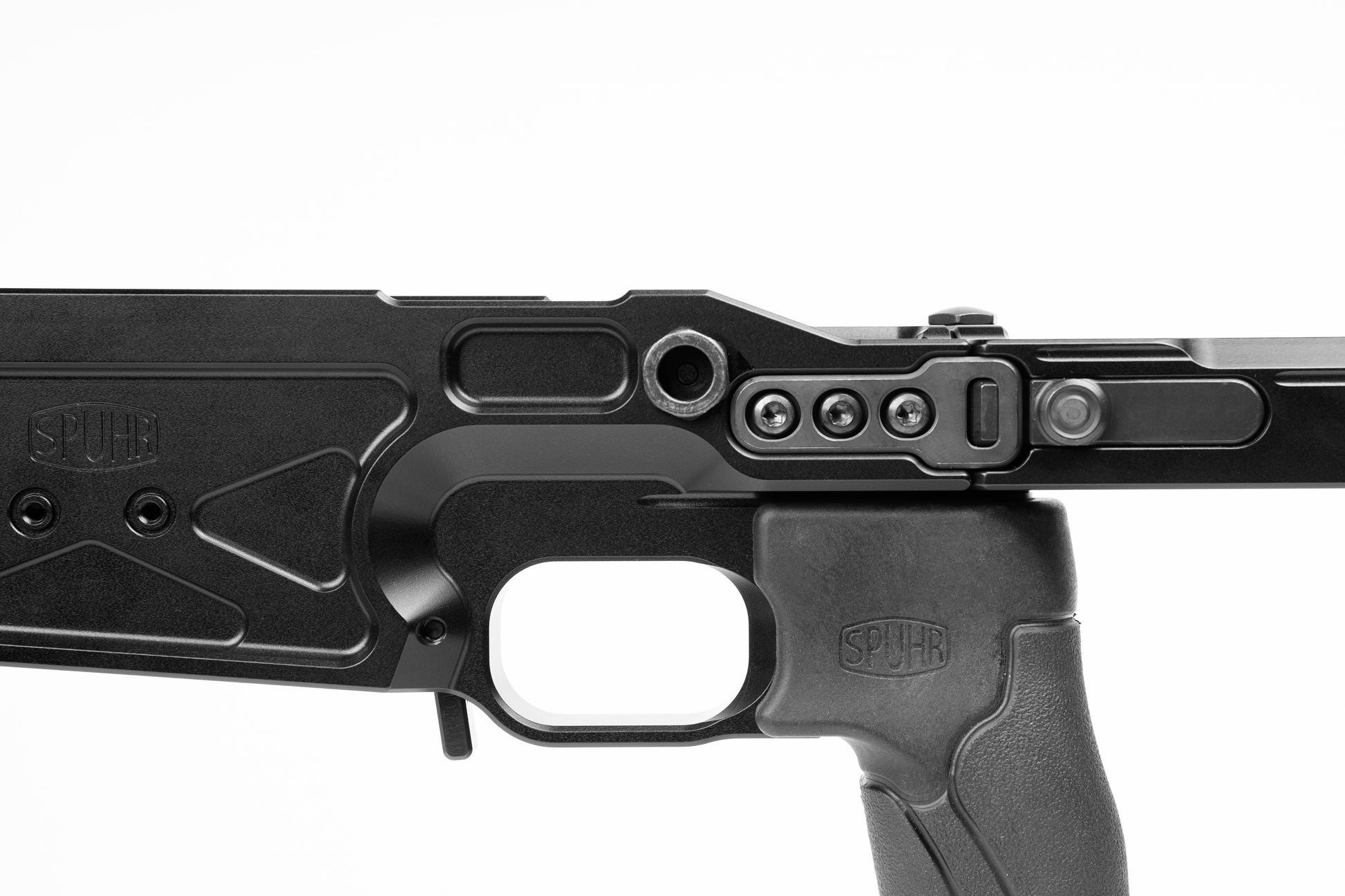

• Folding stock assembly with adjustment for solid lockup

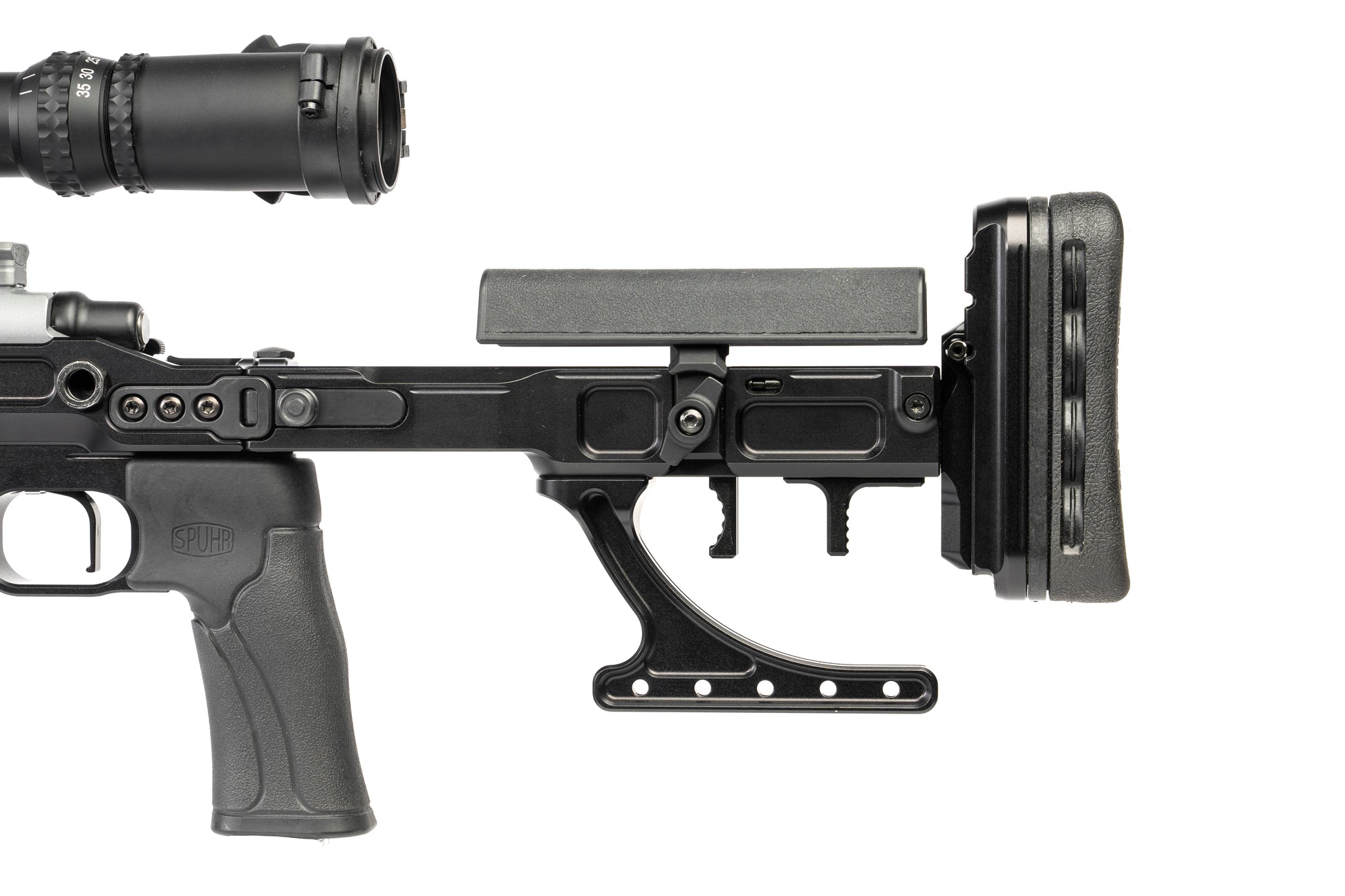

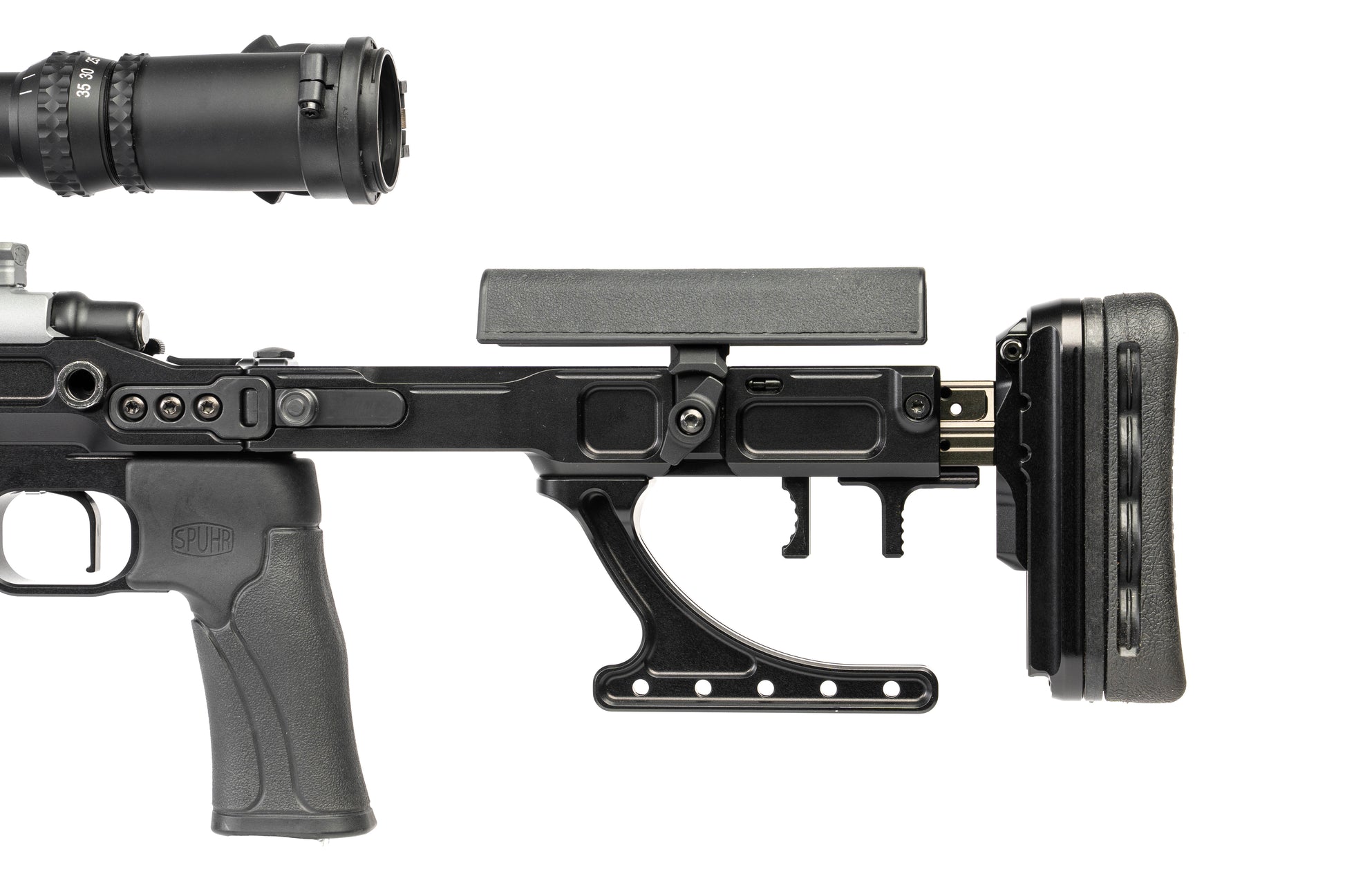

• Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play

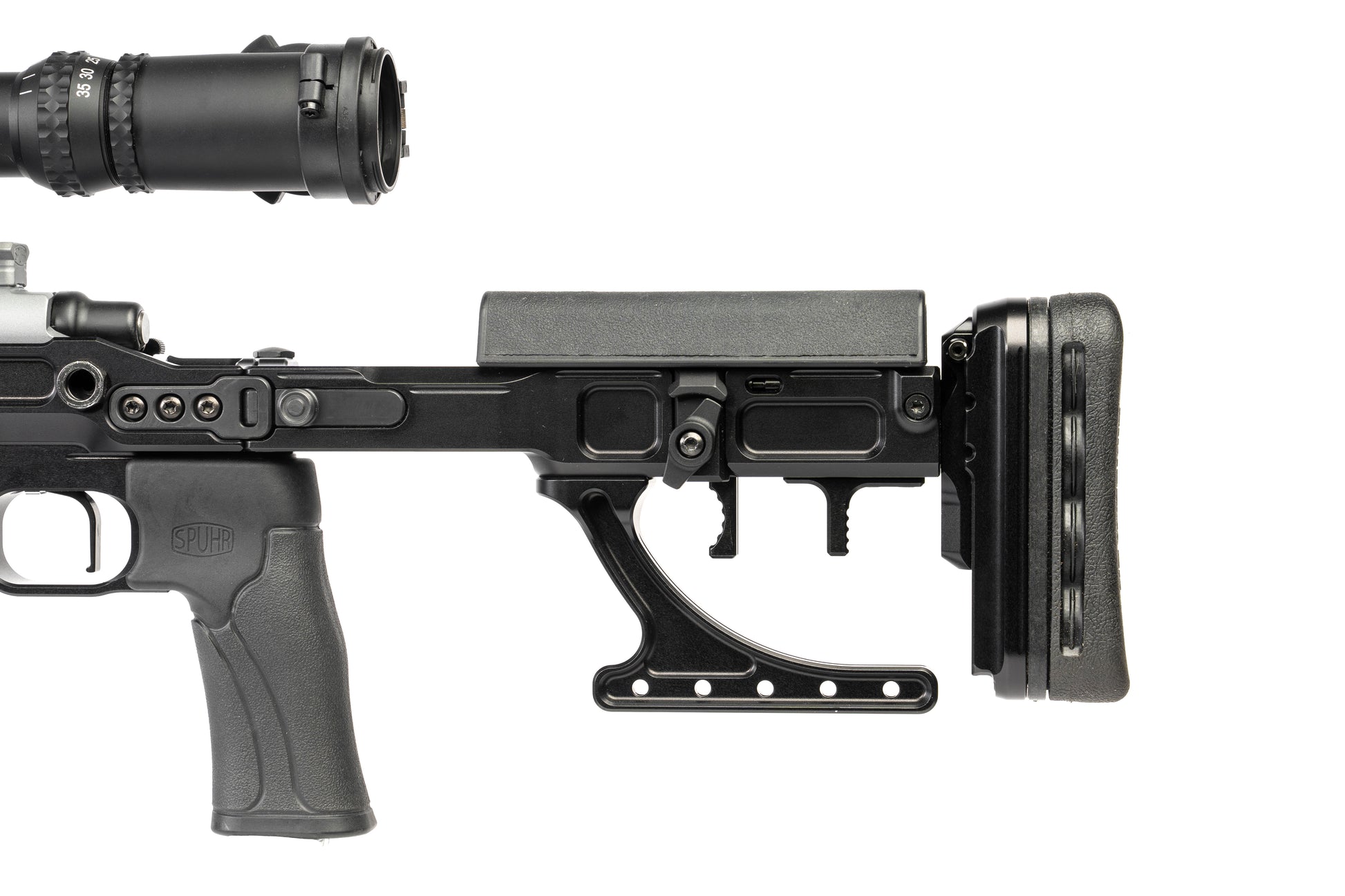

• Height and length-adjustable cheek piece
• Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)

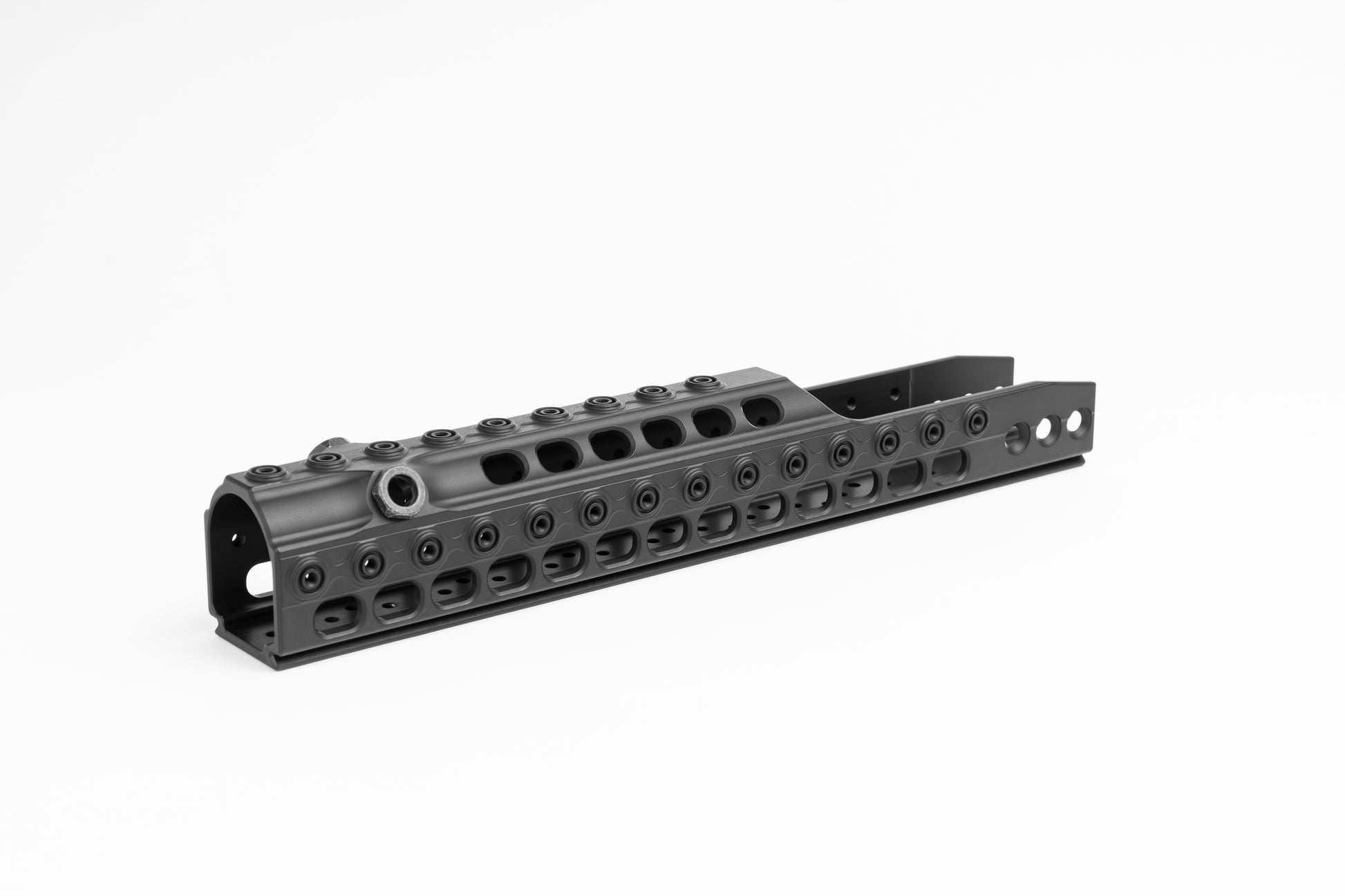

• 13” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
• AICS pattern magwell - not for AI AX magazines
• Built-in barricade stop

Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs may require fitting.
Max barrel diameter at the shank: 32 mm/1.25".
Clearance between front of action and handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
