QDF-20153K Aimpoint T-2 Magnifier Mount H39mm/1.53" QDP

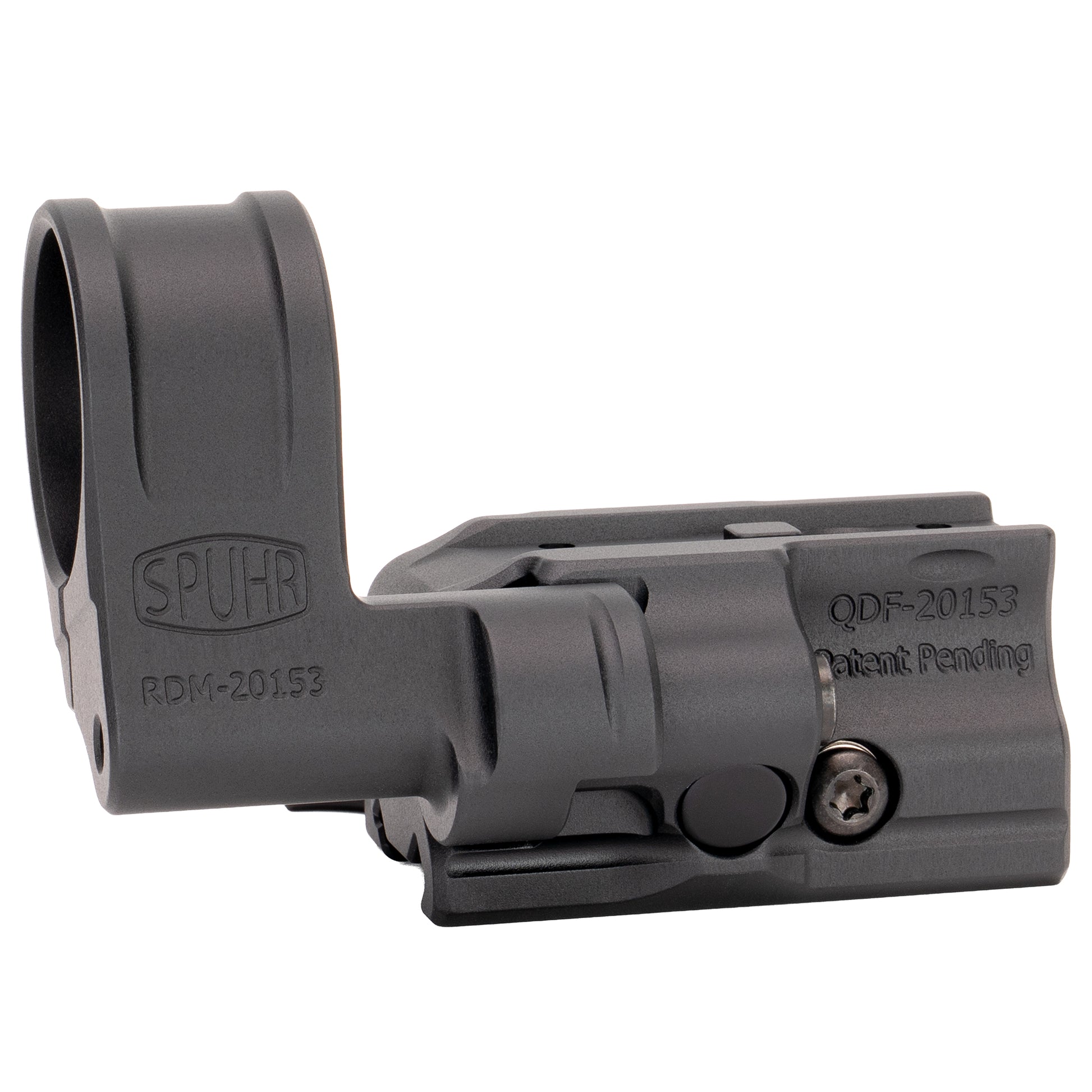

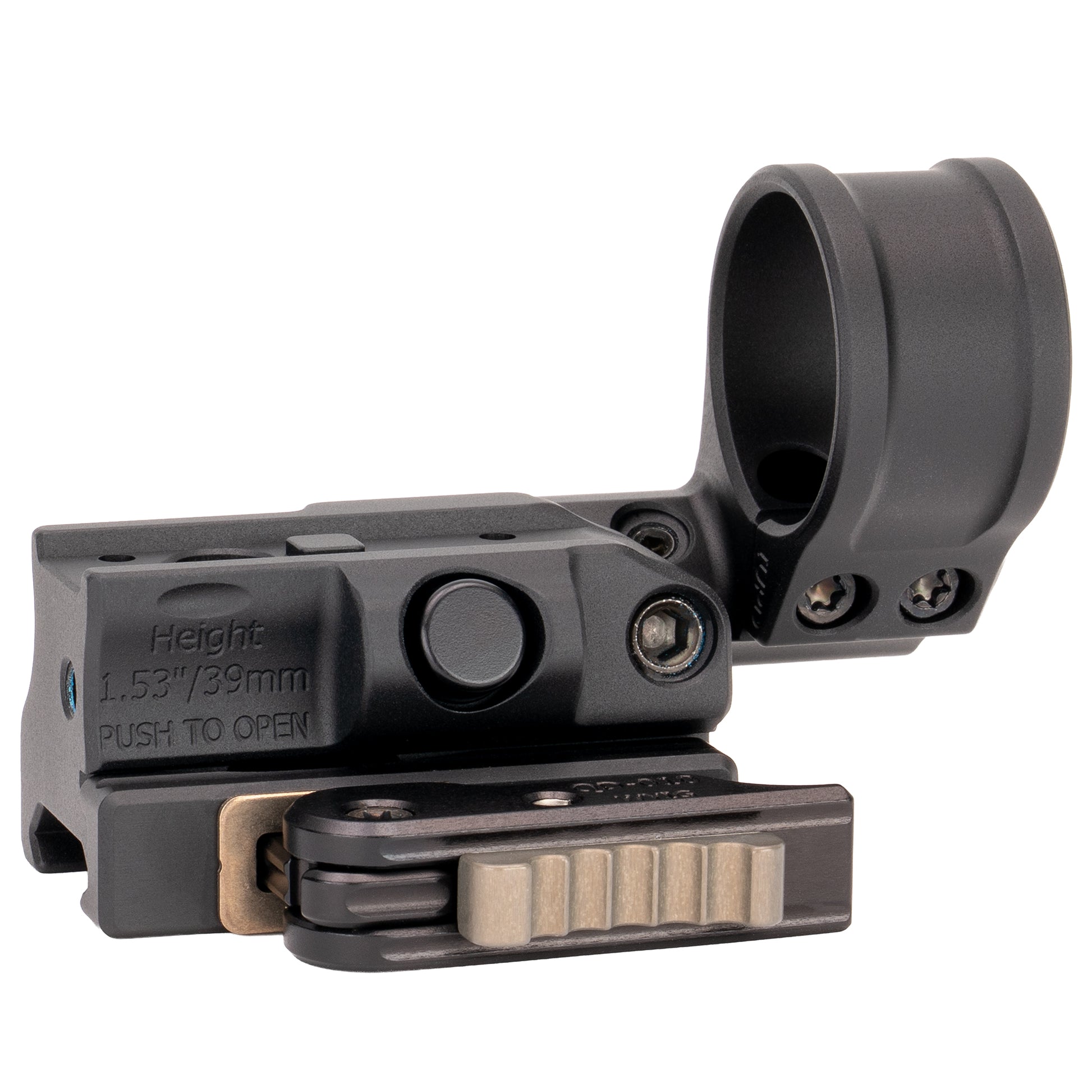

The QDF-20153K Aimpoint T-2/CompM5 Magnifier Mount H39mm/1.53" QD is a 39 mm high (measured from the top of the rail to the centerline of the optic) quick-detachable mount for the Aimpoint® Micro® T-2™ and CompM5™ red dot sights with a fold-to-side removable yoke assembly for an Aimpoint® 3X-C™, 3X-P™, or legacy 3XMAG™ magnifier.

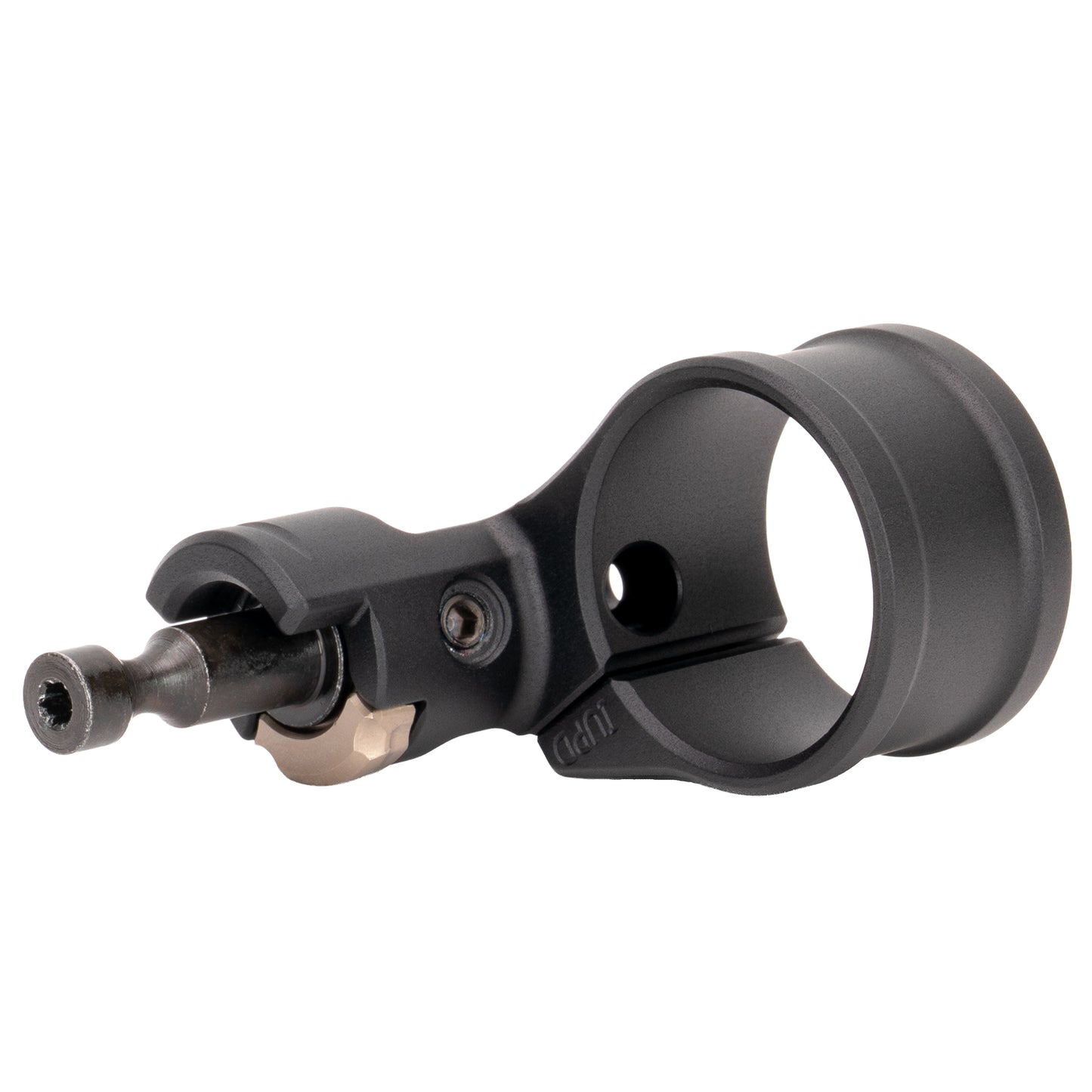

Due to the low height, the QDF-20153K flips the RDM-20153 Magnifier Yoke to the right (outside) rather than to the left (down).

The QDF-20153 can be combined with the A-0056 Micro-to-Acro Interface for use with sights using the Aimpoint Acro footprint.

Height: 39 mm/1.535" / Absolute Co-witness (with Aimpoint Micro T-2)
Length: 57.5 mm/2.26" (without magnifier)
Length: 87 mm/1.78"
Weight: 202 g/7.2 oz

Fits the following red dot sights (though height may vary for non-Aimpoint sights):

• Aimpoint CompM5
• Aimpoint Micro H-1
• Aimpoint Micro H-2
• Aimpoint Micro T-1
• Aimpoint Micro T-2
• Sig Sauer Romeo4
• Sig Sauer Romeo5

Note: Magnifier will not align with Aimpoint CompM5s or similar red dots that share a higher than T-2 optical axis. Optics are not included with the mount.

Spec Sheet
