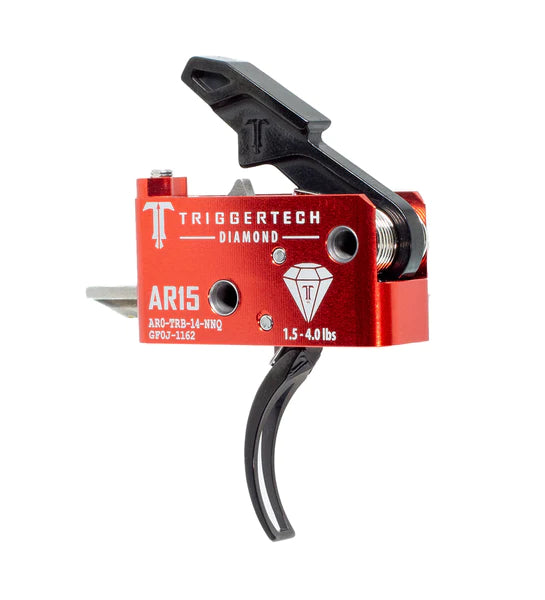

Diamond AR15 Primary Pro Black Skeletonized

Article no: AR0-TRB-14-NNQ

The Diamond AR Primary Trigger was built to satisfy the demand of having one trigger capable of enhancing the accuracy and precision of an AR in every role.

Intended Use
3 Gun, competition, harsh environments operations, high speed shooting, long range hunting, precision shooting, target shooting, varmint hunting.

Trigger Control Details

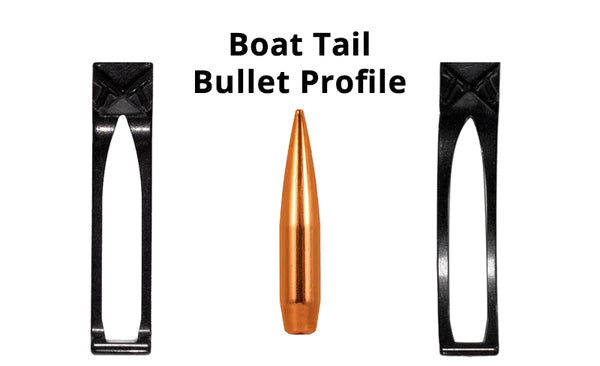

Trigger Lever Type: Pro Curved Skeletonized
Trigger Action: Short Two Stage Action, designed to feel like a 1911
FRT: Yes
TKR Technology: Yes
CLKR Technology: No
FLTWR Technology: Yes
Creep: 0.000"
Overtravel: < 0.381 mm / 0.015"
Reset: < 0.762 mm / 0.030"
Reset Feel: Tactile mid force
Total Pull Weight: 680 g - 1,814 g /1.5lbs - 4.00lbs
Hammer Strike Force: Full
Pin Size: Standard Mil-Spec Pin (0.154")
Warranty: Product lifetime
Weapon Platform: AR 15

Material Details
Housing: 7075 Aluminum (anodized)
Key Components: 440C Stainless Steel
PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.
